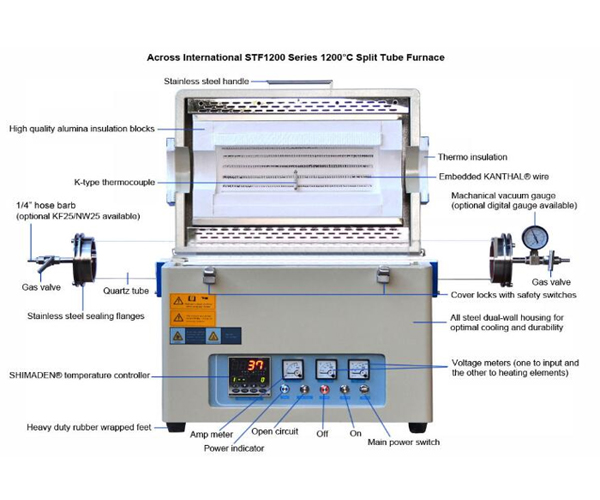

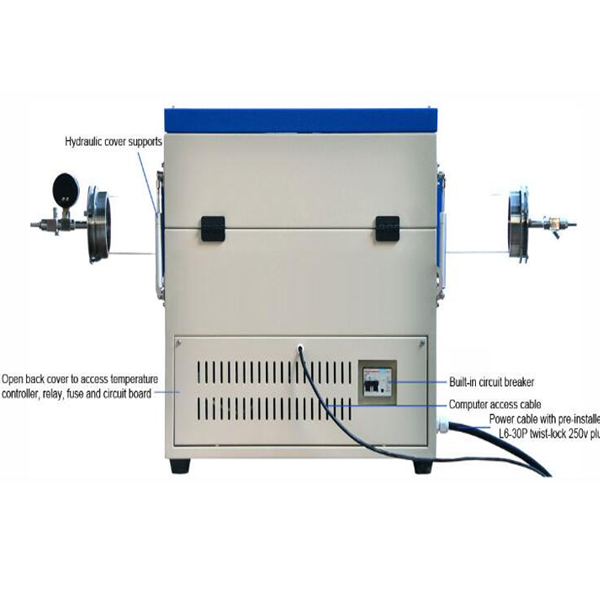

1200C compact split tube furnace feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality grade 1500 alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

All our furnaces are CE compliant.

Compact, portable and lightweight design.

Split furnace chamber for fast and easy tube access.

Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.Built-in computer interface.

Long life type K thermocouple.

1 Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2 Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
