Productive capacity: 8pcs/min

Origin: China

Warranty: 1 Year

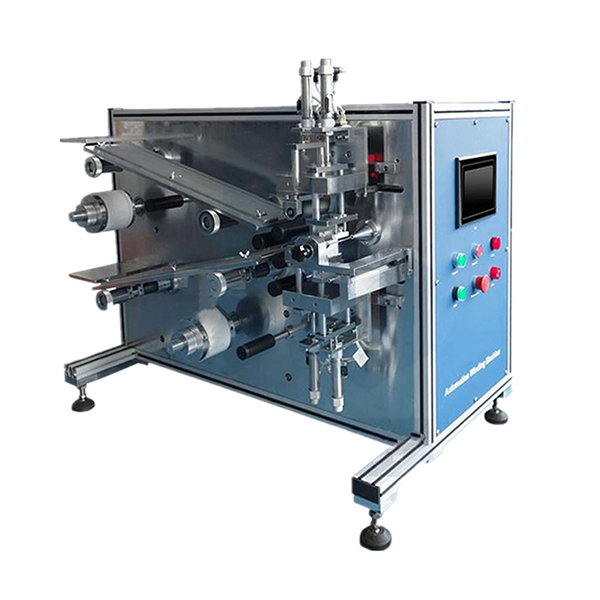

Product description: This battery winding machine is mainly used for precision winding of 18650 and 21700 batteries.

manually guide the cathode and anode electrodes into the winding part, and separated stacking with the separator, and the winding will be carried out according to the requirements of the process, automatically attaching the termination tape, and the cell will automatically feed.

2.1. Adopt single needle counter winding needle structure.

2.2. Manual lead-in electrode, automatic winding, automatic change needle, automatic tape ending tape and automatic unloading;

2.3. The adhesive tape adopts the horizontal paste (the tape is perpendicular to the tab), the adhesive is flat, and the adhesive position can be controlled accurately without tightening the cell; the adhesive is stable and reliable;

2.4. winding needle speed was adjustable;

2.5. Two rolls of separator active to unwinding, tension push switch control technology can adjust tension automatically during winding.

2.6. It has a dust removal device;

2.7. Separator outer pack end.

2.8. The cell after winding without damage, core pulling and electrode dislocation phenomenon;
