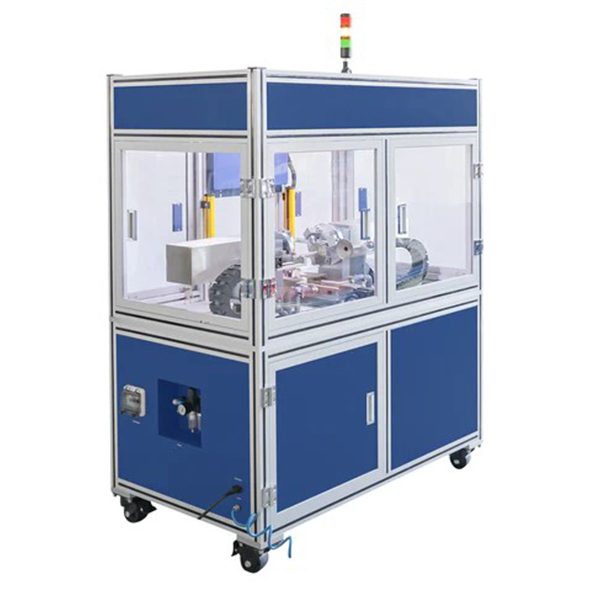

This unit is a machine used for flattening the tab of tabless cylindrical cells. The cylindrical cell is manually loaded and being automatically positioned for flattening process. The waste collection function is available with machine. The cell diameter range is Φ18-Φ60mm and the length is 65-150 mm.

Auxiliary positioning of cylindrical cell loading, easy to use, reducing positioning errors,

Tabless cell flattening result surface flat, clean and consistent,

With metal scrap removal function, reducing the residual scraps on the battery cell flat surface and recycling the scraps dropped during flattening,

The speed of the two sides of the flattening device can be adjusted independently and the moving distance can be adjusted symmetrically,

The flattening mold is mode of high-strength mold steel with good wear resistance and long service life,

Double button start function and safety light curtain designed at the loading port ensure the personal safety of the operator,

PLC control and integrated HMI operation make it easy to use and maintain.
