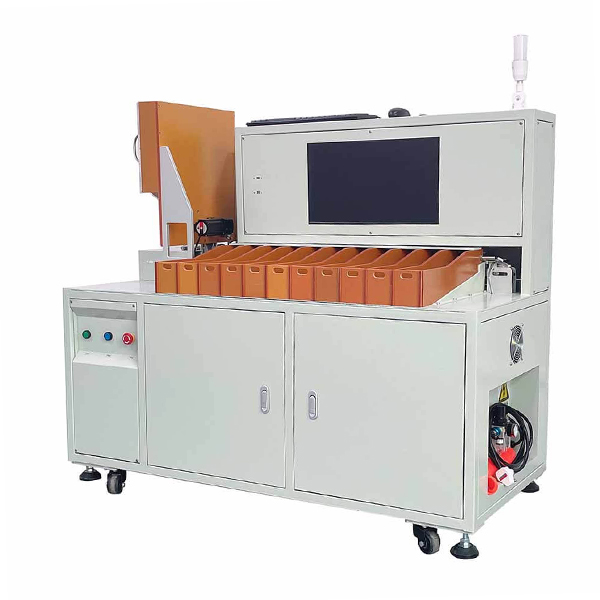

Product Name:  Auto Sorting Machine
Product Model: IBE-CSM-20
Click Times: Times
Core Components:PLC Product description: Automatic sorting machine and 10 channel sorter are integrated, double position whole box feeding, high efficiency and labor saving. Functional Features: 1. The knife mold is not sticky, and the highland barley paper fits firmly and uniformly, which does not affect the following process. 2、With high precision internal resistance, voltage, automatic test system. According to the set internal resistance voltage value, the cell can be accurately sent to the specified gear. 3、Automatic sticker machine and 10 channel sorter are integrated, double position whole box feeding, high efficiency and labor saving. 4、The test data is stored in batches, with its own saving function. The bar code corresponds to the test voltage internal resistance data, and the data is permanently saved and can be downloaded and extracted. 5、The scanner is equipped with an inductive switch, which automatically scans the bar code on each cell when it senses the cell. 6、The automatic receiving function can automatically put the cell into different receiving boxes, with full material alarm function to improve work efficiency.
【Previous】
Next
|
Product name | Lithium battery sticker & sorter& receiving integrated machine |
Model | IBE-CSM-20 |
Control system | PC + industrial control |
Input voltage | AC 220V+10% 50Hz |
Feeding mode | Double position whole box feeding |
Equipment air pressure | 0.6~0.8Mpa |
Work efficiency | 4200pcs- 4500pcs 1H |
Sorting speed | 80-100PPM |
Scope of application | Cylindrical Cell (model can be customized) |
Size(LxWxH) | 1450x1 100x 1650mm |
Receiving channel
| 10 sorting group channels, including one unqualified channel |
Voltage measurement accuracy
| Range 0-20V, basic accuracy +0.01 %rdg, resolution 0.1mV |
Internal resistance detection accuracy | Range 0-30mQ accuracy 士0.5%rdg, resolution 0.1mQ |
