Effective Volume: 5 L

Rotation speed: 0-1400 rpm/min

Warranty: 2 Years

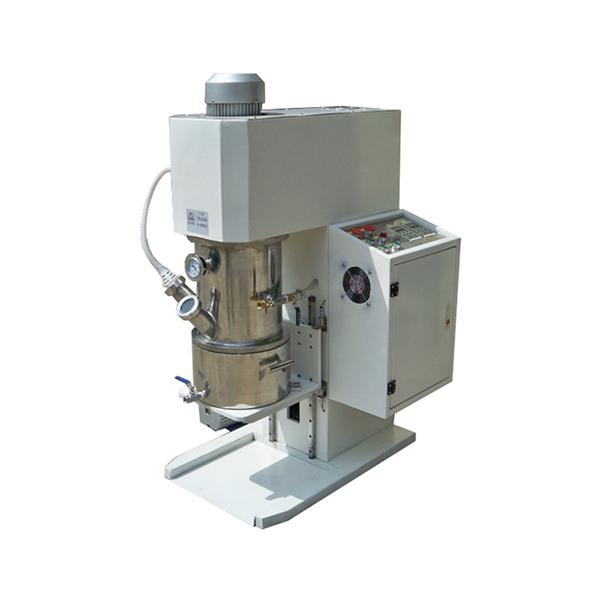

Product description: This planetary vacuum mixer machine is suitable for the battery cathode and anode electrode slurry mixing process in the lithium battery experiment process

This machine is a high-efficiency equipment that integrates vacuum mixing and dispersion. It is suitable for the battery cathode and anode electrode slurry mixing process in the lithium battery experiment process.Also it is widely used in solder paste, silica gel, chemical industry, etc.

Using industry-leading soft sealing technology, can maintain -0.098Mpa state for more than 24 hours;

Supported by double precision guide columns, the cylinder pushes the mixing tank to open and close, humanized design, precise and efficient;

The tank body is made of high-quality 304 stainless steel, after being processed by a large horizontal lathe, and then polished by a precision automatic polishing machine to ensure high precision;

The double-dispersed blade design makes the material tumbling up and down and around, so that the slurry is mixed quickly and evenly;

The stirring motor adopts gearbox frequency conversion adjustment, and different speeds and torques can be selected according to different processes and different viscosities;
