Type: Continuous Coating Method

Coating width: 80mm-280mm

Coating Thickness: 30um-200um

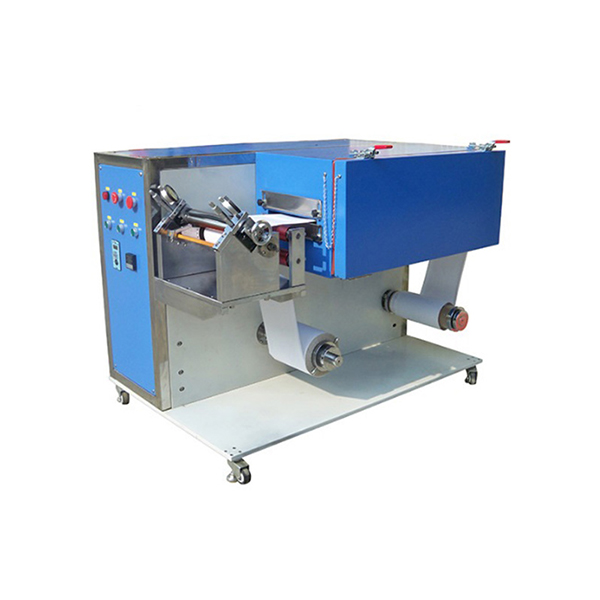

Product description: IBE-CCM-300 Lab battery electrode coating machine is a compact Roll to Roll continuous coater for small size lithium battery research in laboratory of university and factory.

This coating system integrates the functions of reeling in and out, slurry feeder, coating blade, baking oven, and final electrode rewinding. It can coat electrode sheets up to 280mm width and 500 meter length automatically.

This lab coating machine is mainly used for LFP, LCO, LMO and NCM system battery cathode and anode electrode continuous coating.

One convenient design is that it has four wheels on bottom of equipment, it can be removed easily for laboratory use.
